Laboratory location : Electrical Engineering Faculty, Building Energetics, Room EN 302, Bd. Profesor Dimitrie Mangeron, nr. 21- 23, 700050 Iasi, România
The Power Electronics Laboratory for electrical engineering studies has a tradition of almost 40 years (1974). It was conceived as a teaching and research laboratory in a relatively new technical domain involving important aspects of the electricity: static energy conversion, energy management, power quality, etc.

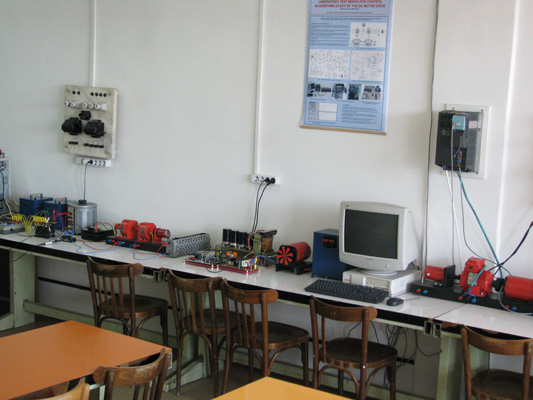

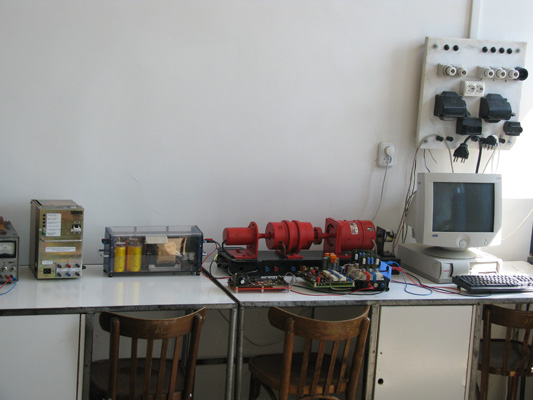

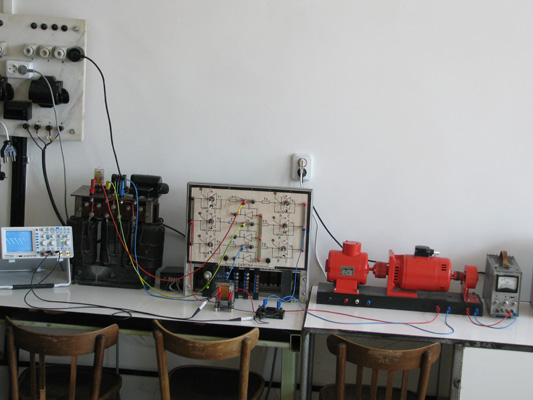

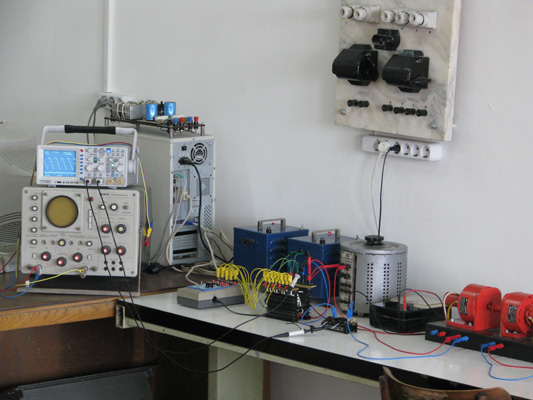

Trying to keep up with the extraordinary development of power electronics, in recent years the teaching lab has been completely restructured and modernized to be able to offer didactic applications from the simple to the complex in a practical manner. Currently, it may be listed more than 30 laboratory applications, most of them achieved with open case and modular equipments designed and manufactured in the laboratory as applied projects. The majority of the didactic applications are devoted to the modern switch-mode converters achieved with power transistors, integrated power modules and integrated drivers. Besides the equipments made for didactic purpose, the laboratory includes many power electronic structures especially designed for research experiments.
The paper for each laboratory application available on the site is conceived in three parts. The first part treats the theoretical aspects (course support) related to a power electronic structure, the second part describes the laboratory set-up necessary to study the practical aspects of the structure operation and the last part presents the procedures to follow in order to accomplish the lab application objectives.
|Assoc.Prof.Ph.D.eng. Mihai ALBU||Lecturer Ph.D.eng. Daniel STICEA|
List of laboratory applications :
Lab no.1: The place and the importance of power electronics
Lab no.2: Overview of the power semiconductor devices and of the power modules.
Lab no.3: Thyristors and triacs control. Thyristors gate trigger circuits.
Lab no.4: Control of the power bipolar junction transistors (BJT).
Lab no.5: Control of the power MOS gate transistors.
Lab no.6: Integrated MOS gate drivers (MGD).
Lab no.7: Rectifier and inverter mode.
Lab no.8: Single-phase bridge rectifiers with current filters.
Lab no.9: Inverter mode operation of the single-phase rectifier.
Lab no.10: Single-phase bridge rectifier with the voltage filters.
Lab no.11: Half-controlled single-phase rectifier.
Lab no.12: Three-phase midpoint rectifiers with current filters.
Lab no.13: Three-phase bridge rectifier.
Lab no.14: Half-controlled three-phase rectifier.
Lab no.15: Four-quadrant line-frequency rectifiers (bidirectional thyristor rectifiers).
Lab no.16: DC voltage sources for the choppers and inverters.
Lab no.17: Pulse Width Modulators (PWM) for the DC/DC converters control.
Lab no.18: One and two-quadrant choppers.
Lab no.19: Four-quadrant choppers â€“ half bridge structure.
Lab no.20: Four-quadrant choppers â€“ full bridge structure, PWM controlled with bipolar voltage switching.
Lab no.21: Four-quadrant choppers â€“ full bridge structure, PWM controlled with unipolar voltage switching.
Lab no.22: DC/DC converters with voltage filters â€“ buck and boost structures.
Lab no.23: DC/DC converters with electrical isolation â€“ forward and fly-back structures.
Lab no.24: Pulse Width Modulators for the PWM inverters.
Lab no.25: Voltage single-phase PWM inverters.
Lab no.26: Voltage three-phase PWM inverters.
Lab no.27: Constructive and functional analysis of an industrial PWM inverter.
Lab no.28: Single-phase active rectifier with the power factor correction (PFC) circuit.
Lab no.29: Single-phase PWM rectifier.
Lab no.30: Three-phase PWM rectifier.
Lab no.31: Power active filters.
